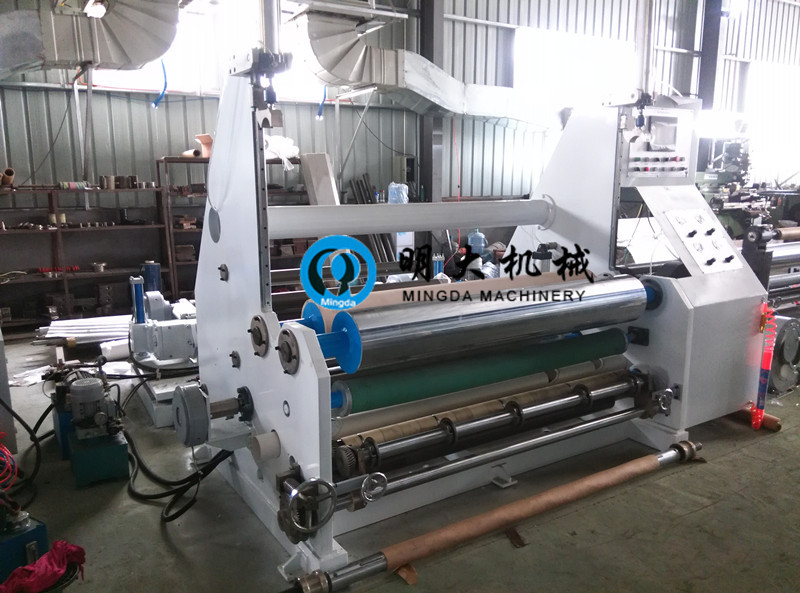

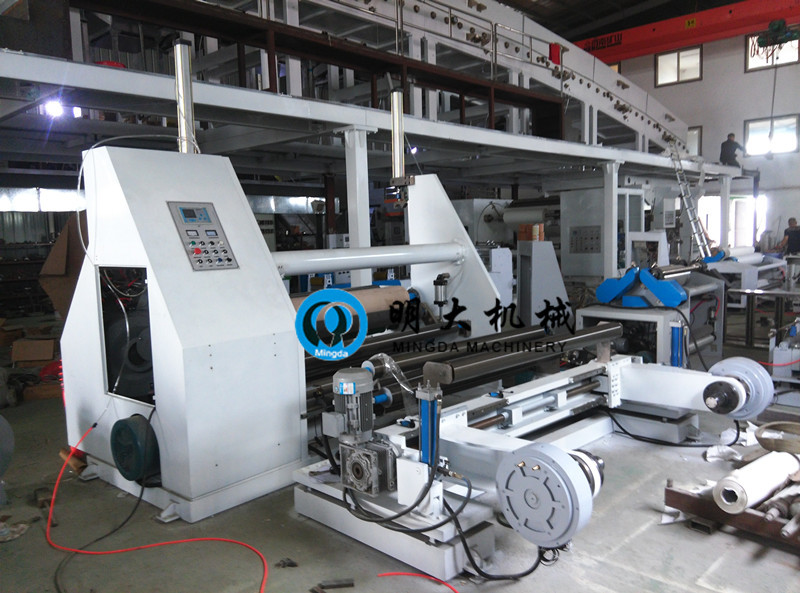

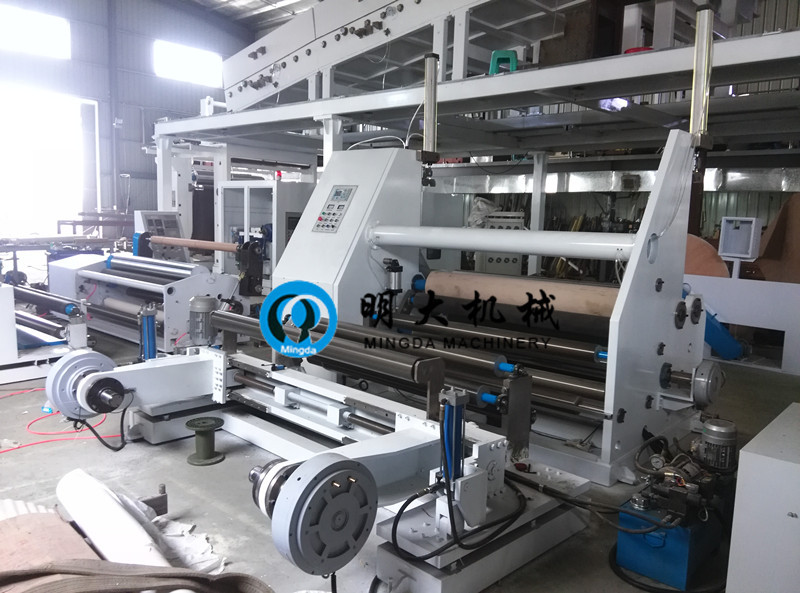

厂家专业生产供应,JH-H1800型高速全自动卷筒原纸分切复卷机

用途：

该机适用于该机适用于牛皮纸，铜版纸等各种卷筒状原纸的复卷分切作业理想设备。

USES:

This machine is suitable for this machine is suitable for kraft paper, coated paper and other reel of base paper rewinding cutting operation ideal equipment.

主要技术参数：

1.适用原料宽度：1800mm（根据客户需求）

2.原料放卷最大直径：φ1200mmφ3”φ6”

3.原料收卷最大直径：单收φ1000mm  收卷轴φ3”φ6”

4.放卷张力：400N.M X2磁粉刹车

5.收卷电机功率：22KW（皖南变频矢量电机，汇川变频器）

6.吹废边电机：1.1KW

7.机械速度：350米/分，工作速度300米/分

8.圆刀分切系统

9.机架为50mm钢板

10.主控制部分：随机连体式

11.设备尺寸：38504300X2500

The main technical parameters:

1. The range of the material width: 1800 mm (according to customer requirements)

2. Rolling diameter Material: 1200 mmφ3” orφ6”

3. Raw material winding diameter: single closed scroll phi phi 1200 mm 3" 6”

4. Rolling tension: 400 n. M X2Magnetic powder brake

5. Winding motor power: 22 kw (frequency vector motor in the south of anhui, inovance inverter)

6. Blow the waste motor: 1.1 KW

7. The mechanical speed: 350 m/min, 300 m/min in her work

8. Circular knife cutting system

9. The chassis of 50 mm steel plate

10. The main control part: random postures

11. The equipment size: (length X width X height) 38504300X2500
