GSR Ventiltechnik GmbH & Co.KG – P.O.Box 2060 – 32595 Vlotho – Germany Errors expected, subject to change!
Phone +49 (0) 5228 779 0 - Fax +49 (0) 5228 779 90 State: 02/2015
www.ventiltechnik.de
Solenoids
Type : .802 = 24 Watt
: .322 = 30 Watt
: .242 = 46 Watt
Protection class : IP65 according to DIN 40050
Duty factor : 100% ED-VDE 0580
Connection type : Plug/Terminal box
Explosion-proof : Ex e mb II T4
: Further Ex-proof on request.

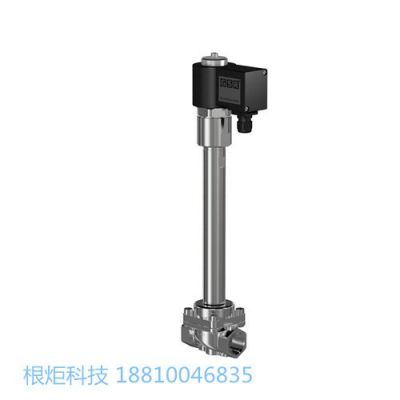

Solenoid Valve Type 91
For LNG Applications
2/2-Way Valve System
Type : 91
Type of Control : force-pilot operated
Construction : piston design
Function : NC - non energized closed
Connection : PN16 - threaded G1/4 – G2, DIN ISO 228
: PN40 - welded ends DN1/4” – DN2”, DIN 3239
Pressure Range : PN16 - 0-16 bar
: PN40 - 0-40 bar
Medium : LNG
Temperature : -196°C/+60°C
Body Material : PN16 - brass 2.0401 / stainless steel 1.4581
: PN40 - stainless steel 1.4404
Seal Material : PTFE
Mounting : actuator upright
GSR Ventiltechnik GmbH & Co.KG – P.O.Box 2060 – 32595 Vlotho – Germany Errors expected, subject to change!
Phone +49 (0) 5228 779 0 - Fax +49 (0) 5228 779 90 State: 02/2015
www.ventiltechnik.de
Further Options on request
NO : Open by spring power
DW : With double acting actuator
HA : With manual operation (manual override)
FL : With flanges acc. to EN 1092-1 Form C*
* Other flange connections like ASME or JIS on request

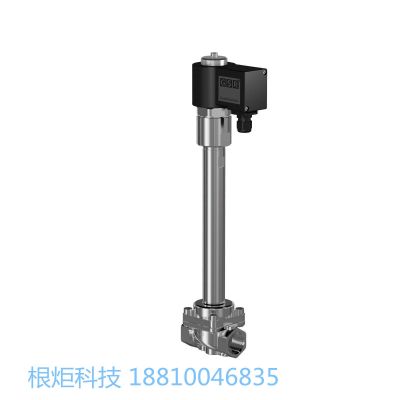

Solenoid Valve Type 90
For LNG Applications
2/2-Way Valve System
Type : 90
Type of Control : fdirekt pressure controlled
Construction : poppet design
Function : NC - closed by spring power
Connection : PN16 - threaded G1/4 – G2, DIN ISO 228
: PN40 - welded ends DN1/2” – DN2”, DIN 3239
Pressure Range : PN16 - 0-16 bar
: PN40 - 0-40 bar
Medium : LNG
Temperature : -196°C/+40°C
Body Material : PN16 - stainless steel 1.4581
: PN40 - stainless steel 1.4404
Seal Material : PCTFE
Mounting : actuator upright
