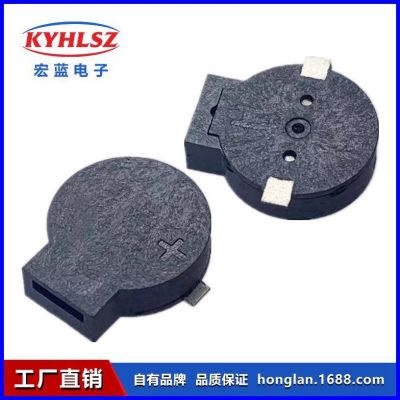

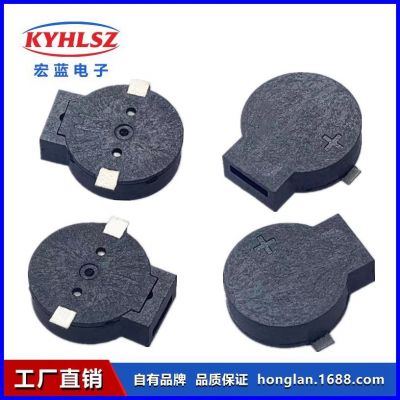

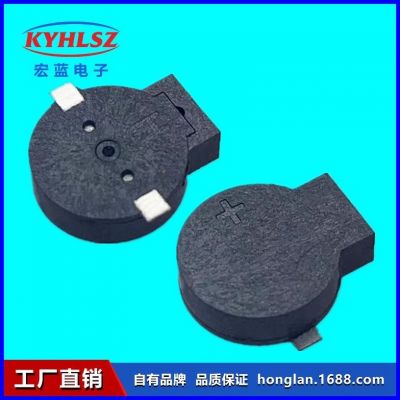

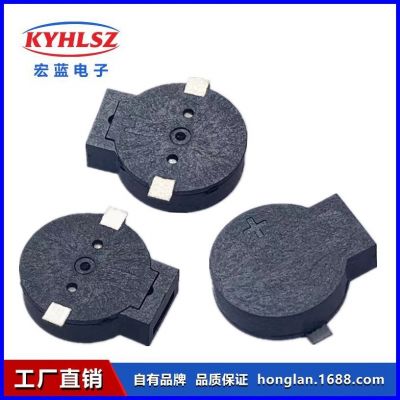

工厂销售9032 9025高温贴片无源电磁蜂鸣器数码产品用

Oscillation Frequency (Hz)

2700

Operating Voltage (Vp-p)

2.5 ~4.5

Rated Voltage (Vp-p)

3.6

Current Consumption (mA/max.)

100 at Rated Voltage

Sound Pressure Level (dB/min.)

85 at 10cm at Rated Voltage

Coil Resistance (Ω)

16 ± 3

Operating Temperature (℃)

-30 ~ +70

Storage Temperature (℃)

-40 ~ +85
