about this item

• KG-F series volt-ampere meter is a new type of coulomb meter that can measure various physical parameters such as voltage, current, power, charge and discharge capacity, watt-hour, time, etc. At the same time, it can also set parameters to achieve over-voltage protection, under-voltage protection, Multiple protection functions such as over current protection, over power protection, over temperature protection and time limit protection.
• The meter can automatically identify the direction of the current, and can monitor the battery capacity in real time. The 2.4-inch TFT color LCD display displays the current function menus, parameter settings and measured data, and the display information is comprehensive and user-friendly.
• The remaining battery capacity is highlighted graphically and more intuitively. The 50% value represents that the remaining battery capacity accounts for 50% of the preset battery capacity. In the main interface, when the remaining capacity percentage is less than or equal to 20%, the battery remaining capacity graphic displays red; when the remaining capacity percentage is greater than 20%, the battery remaining capacity graphic displays green.
• Support mobile phone control. The mobile APP can connect to the measurement module through wireless communication, instead of the display to view data and set parameters. It can also upgrade the firmware of the measurement module. The mobile APP can view the real-time curve and historical curve of voltage and current, and support data export. APP can be downloaded in the attached manual.

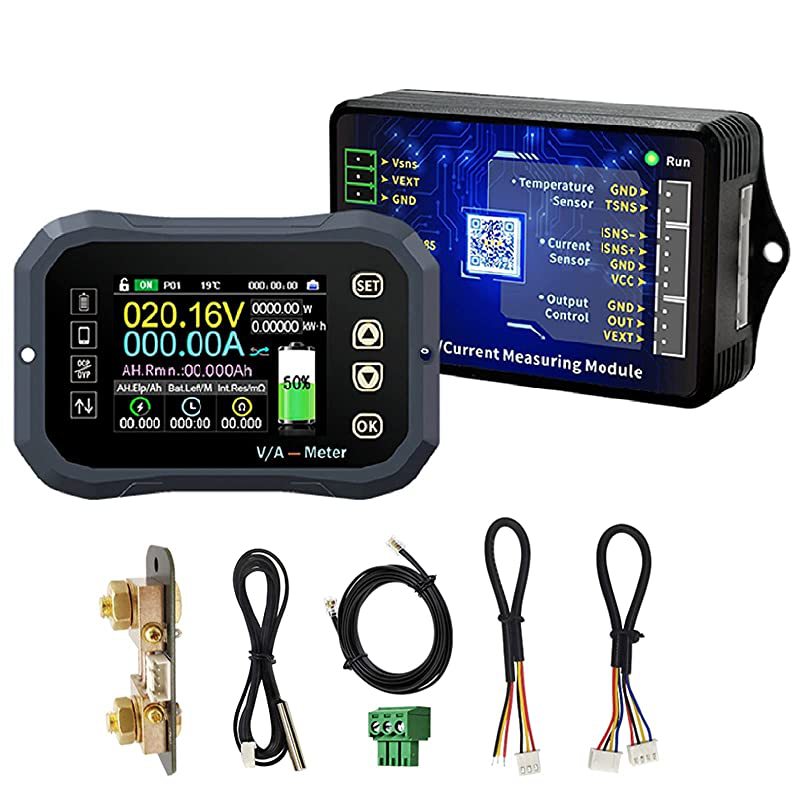

• Package include: 1 x KG-F measuring module, 1 x KG-F 2.4 inch color screen monitor, 1 x KG-F sampler, 1 x 3m data cable, 1 x temperature sensor, 1 x 4P cable, 1 x 3P cable, 1 x power socket, 1 x user's manual. If you have any question, please feel free to contact us.
